Requirements

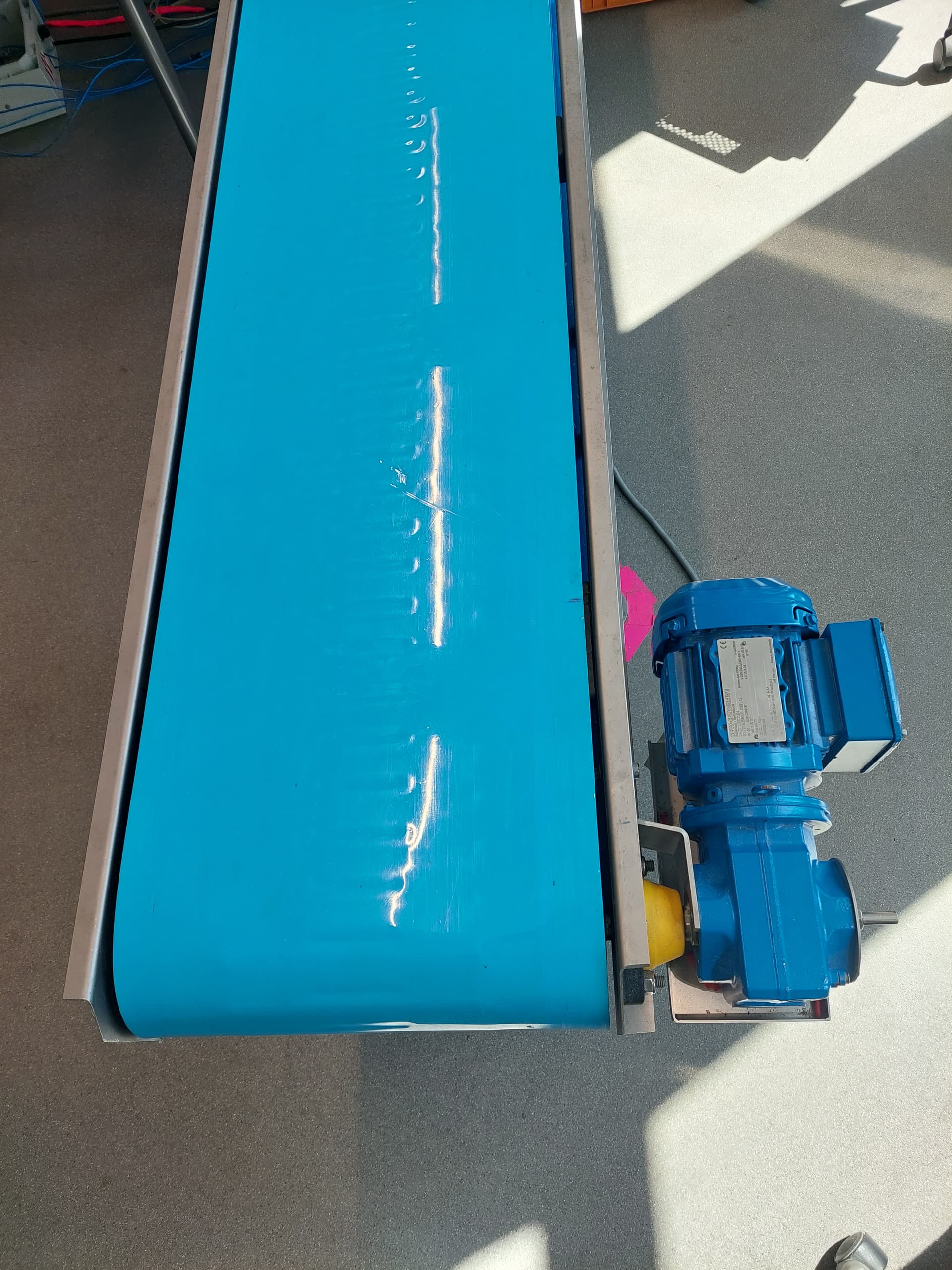

This topic uses the following conveyor belt and motor:
And the following converter: T-verter e2-201-h1f:
Wiring

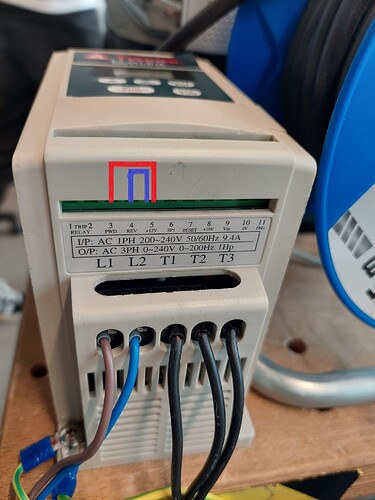

Current form of connection:
T1: Black cable T2: Brown cable T3: Grey cable

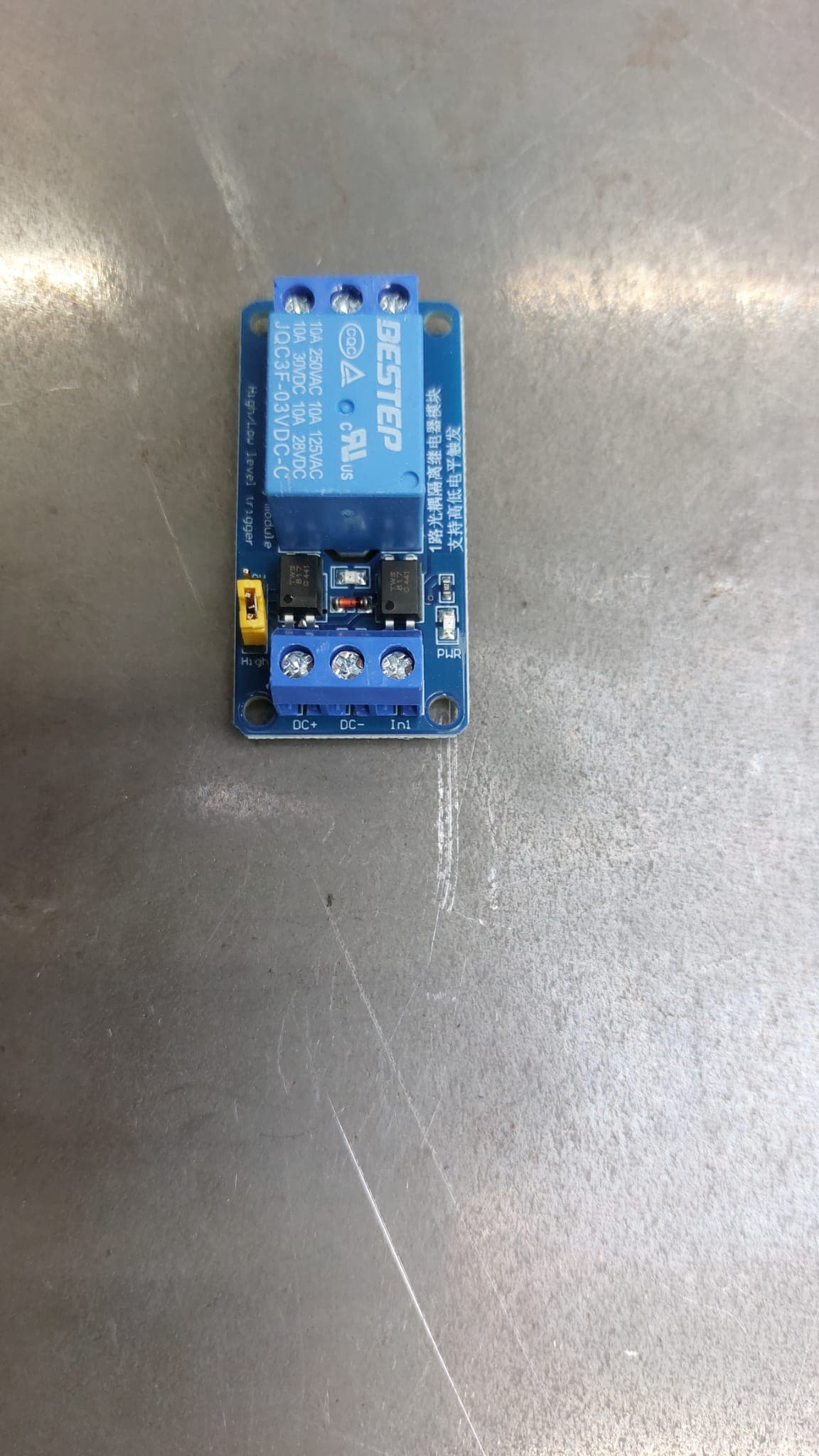

To give input to the converter you have to connect it with a relais (JQC3F-03VDC-C)

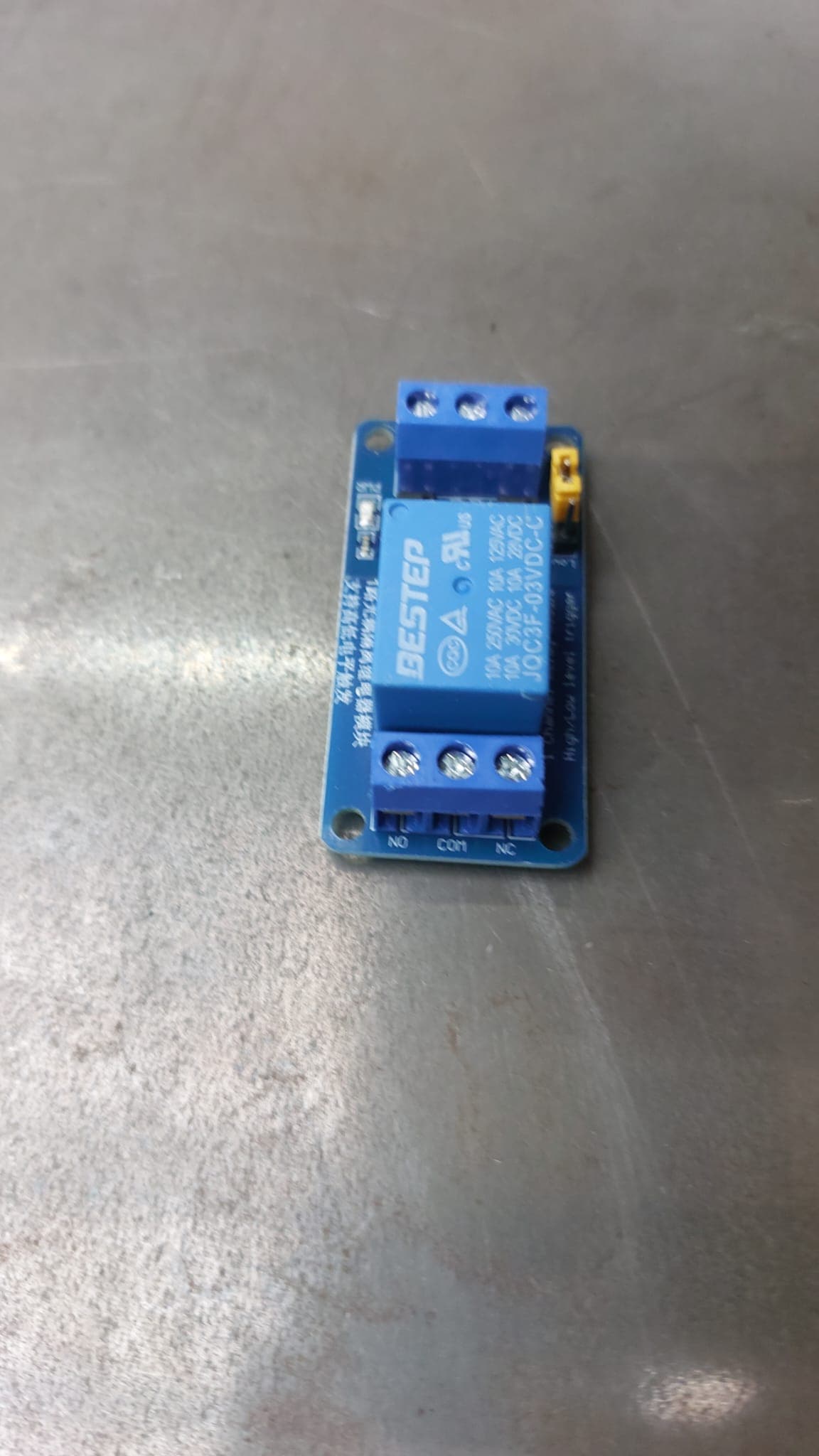

The red wire of the converter needs to be connected to NO (Normaly open)
The black wire of the converter needs to be connected to NC (Normaly closed)
COM needs to have a input of 24V
On the other side needs to be the wires of the Arduino
A signal or input wire needs te connected to Ini.
The ground of the arduino to the DC-
The 5V of the arduino to the DC+
With code you can control the input.

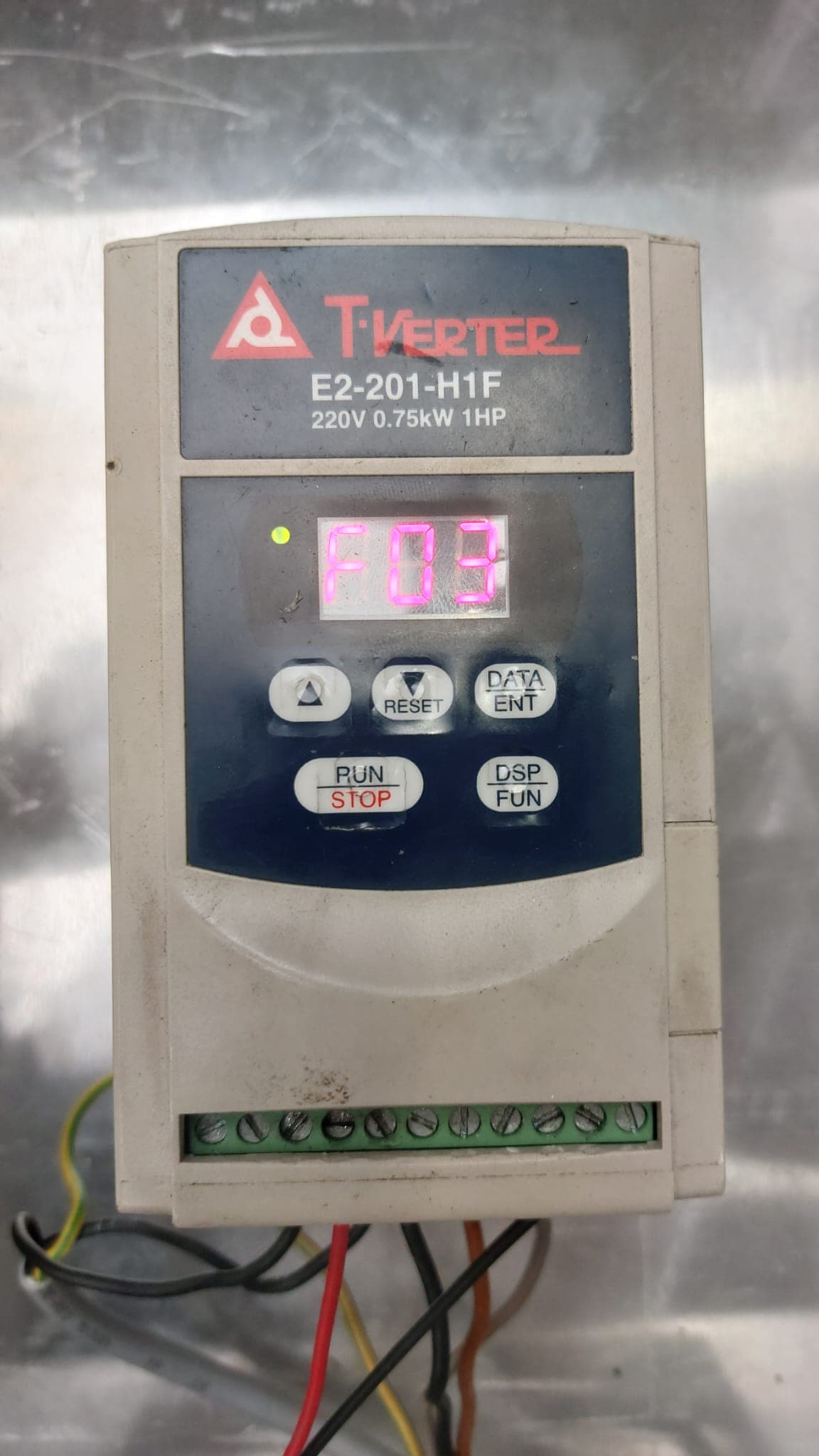

The converter has also different kinds of functions. See picture example (F03)
Most important/useful functions:
F01: Speed of conveyor
F04: Direction of conveyor

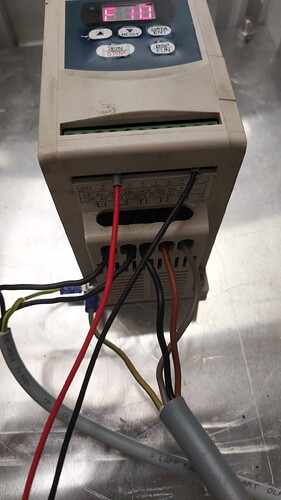

F10: Use an Arduino to control the conveyor
To change between functions, press the pyramid to go up and the Nabla to go down.
To edit functions, press DATA/ENT, press the pyramid or Nabla to change it. To confirm it, press DATA/ENT.
