PNEUMATIC
vs ELECTRIC
When it comes to industrial linear actuators, there are two types of things that commonly come up in our mind: PNEUMATIC and ELECTRIC actuators. But, how do we decide to choose which?
The answer depends on WHAT YOU NEED
If you need speed and simplicity, use pneumatic (if you need more strength, you can consider also hydraulic – similar concept as pneumatic, but using oil)
If you need control and precision, an electric actuator is the answer.
LET’S BREAK IT DOWN
Choosing between pneumatic and electric actuators is crucial for designing effective automation and control systems. Both types of actuators offer distinct advantages and limitations, and the best choice depends on factors like the application’s power requirements, cost considerations, precision, environmental conditions, and maintenance needs. Pneumatic actuators use compressed air, while electric actuators rely on electric motors, and each has strengths that make them more suitable for certain environments or tasks.
PNEUMATIC ACTUATORS
Pneumatic actuators use compressed air to generate motion, either in a linear or rotary direction, depending on the design. They are widely used in industries such as manufacturing, packaging, and automation because they are relatively simple, cost-effective, and capable of delivering high force in compact forms.
-
KEY CHARACTERISTICS
Power Source: They rely on compressed air (pneumatic pressure) for operation.
Speed and Force: Pneumatic actuators provide rapid response times and high force outputs, making them ideal for applications requiring quick, powerful movements.
Simplicity: These actuators are generally easier to maintain and simpler in design compared to electric actuators.
Environmentally Tolerant: Pneumatic actuators perform well in extreme temperatures and hazardous environments where electric actuators might face risks due to overheating or sparking.
Cost: Generally more cost-effective upfront, with low initial installation and operating costs (though ongoing costs for compressed air systems can add up).
Size: Available in a wide variety of sizes, from small to large.
-
APPLICATIONS:
Pneumatic actuators are ideal for applications that require high-speed motion with high force but less precision, such as in assembly lines, conveyor systems, and packaging equipment.
They’re also suitable for environments with explosive hazards, as their operation doesn’t involve electrical sparks or heat.
-
LIMITATIONS:
Energy Consumption: Compressed air systems can be energy-intensive and costly over time.
Limited Precision: Pneumatic actuators may not offer the fine control needed for highly precise operations, as their performance can vary with air pressure fluctuations.
Maintenance: While simple, pneumatic systems can require regular maintenance, such as checking for leaks or maintaining air compressors.
ELECTRIC ACTUATORS
Electric actuators convert electrical energy into mechanical movement, typically through the use of an electric motor that drives a mechanical element like a screw or a gear to produce linear or rotary motion.
-
KEY CHARACTERISTICS
Power Source: They use electrical power, typically via a direct connection to a power grid or battery, making them more precise and controllable than pneumatic actuators.
Precision and Control: Electric actuators offer superior precision and control, especially with modern feedback systems like encoders and position sensors. They are ideal for applications that require exact movement.
Energy Efficiency: They are more energy-efficient than pneumatic actuators because they do not rely on compressed air. Electric actuators only consume power when needed, and there’s no need for an air compressor.
Space and Design Flexibility: Electric actuators tend to be more compact and adaptable to various designs, especially in environments with space constraints.
Maintenance: With fewer moving parts and no need for air systems, electric actuators typically require less frequent maintenance.
-
APPLICATIONS:
Electric actuators are best for applications where precise control, variable speed, and adjustable force are critical. This includes robotics, valve actuators, and processes requiring exact positioning or minimal force fluctuation.
Ideal in controlled environments where electric power is available, and applications that benefit from feedback control and automation.
-
LIMITATIONS:
Power Supply Requirements: They need a reliable electrical power source and may not be ideal in remote or power-limited locations.
Cost: Electric actuators generally have higher upfront costs than pneumatic actuators due to more complex components and control systems.
Heat Generation: Electric actuators can produce heat and, depending on their size, may require cooling systems.
SO, WHICH ONE WE HAVE TO CHOOSE?
When choosing between pneumatic and electric actuators, the decision largely depends on the specific requirements of the application, including speed, force, precision, and environmental conditions.
Pneumatic actuators are ideal for high-speed applications where force is more important than precision. They perform well in hazardous environments and are cost-effective but can be energy-intensive and require more maintenance.
Electric actuators, on the other hand, are best for applications that demand high precision, efficiency, and control. They are more energy-efficient and require less maintenance but come at a higher initial cost and depend on a reliable electrical supply.
Ultimately, the decision comes down to the nature of the task. If the application requires fast, powerful, and less precise motion, pneumatic actuators are the better choice. However, if accuracy, energy efficiency, and space constraints are more important, electric actuators may be the preferred option. Consider the total cost of ownership, including operational costs and maintenance, when making a final decision.

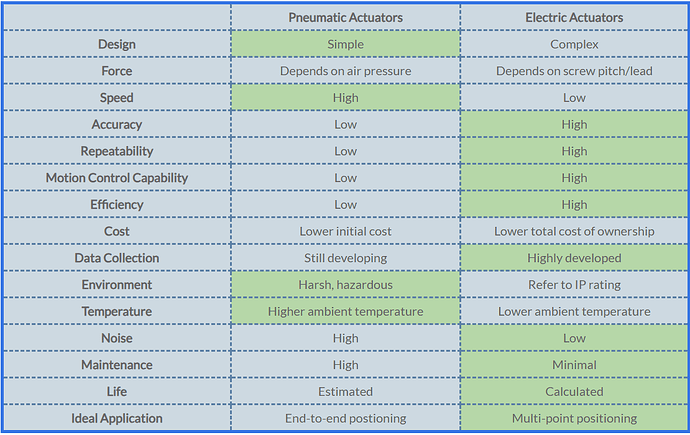

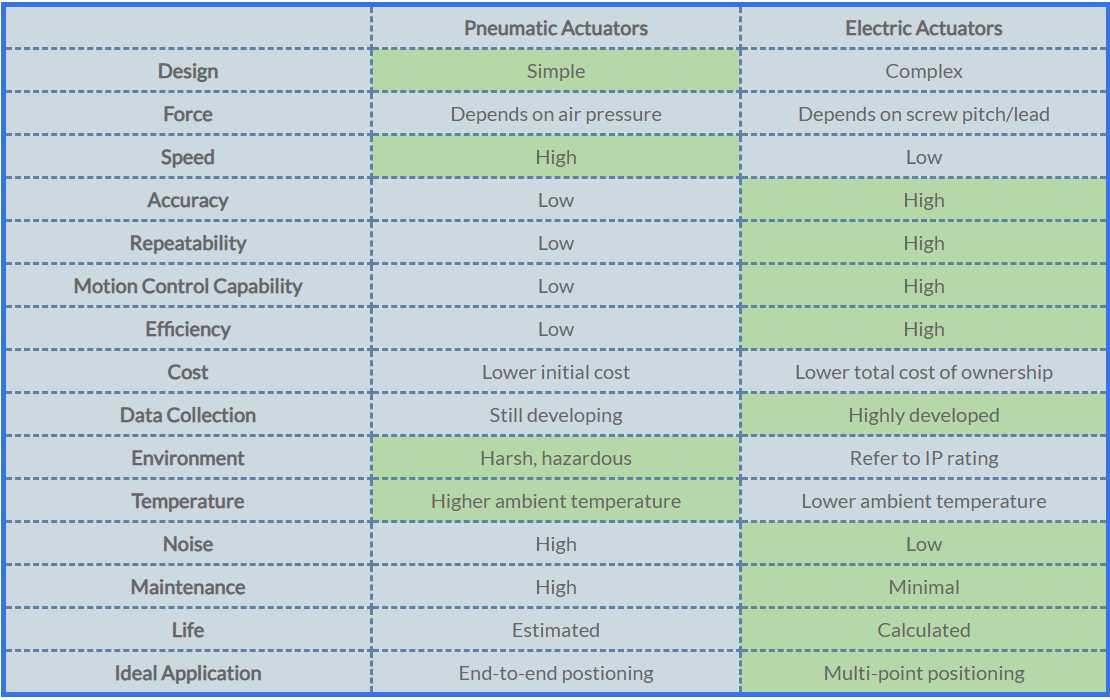

See the table below for the comparison.
